Sample SQL Server 2008 code for building an XCRI-CAP-1.2-compatible relational database

Contents

  1. Disclaimers
  2. Diagram
  3. Design features and issues
  4. Create the database objects
  5. Further topics

Disclaimers

  • This is not an 'official' XCRI project database, and indeed one could not produce such a thing as XCRI is concerned with exchange as opposed to long term storage of information.
  • This is not intended for a production environment.
  • It has not been thoroughly tested (it won't work on SQL Server 2005 as is, because the SQL uses new date datatypes) and some of the namespaces may not be as recommended.
  • If you spot any errors or have any comments, please supply feedback using the Contact method on this website.

Diagram

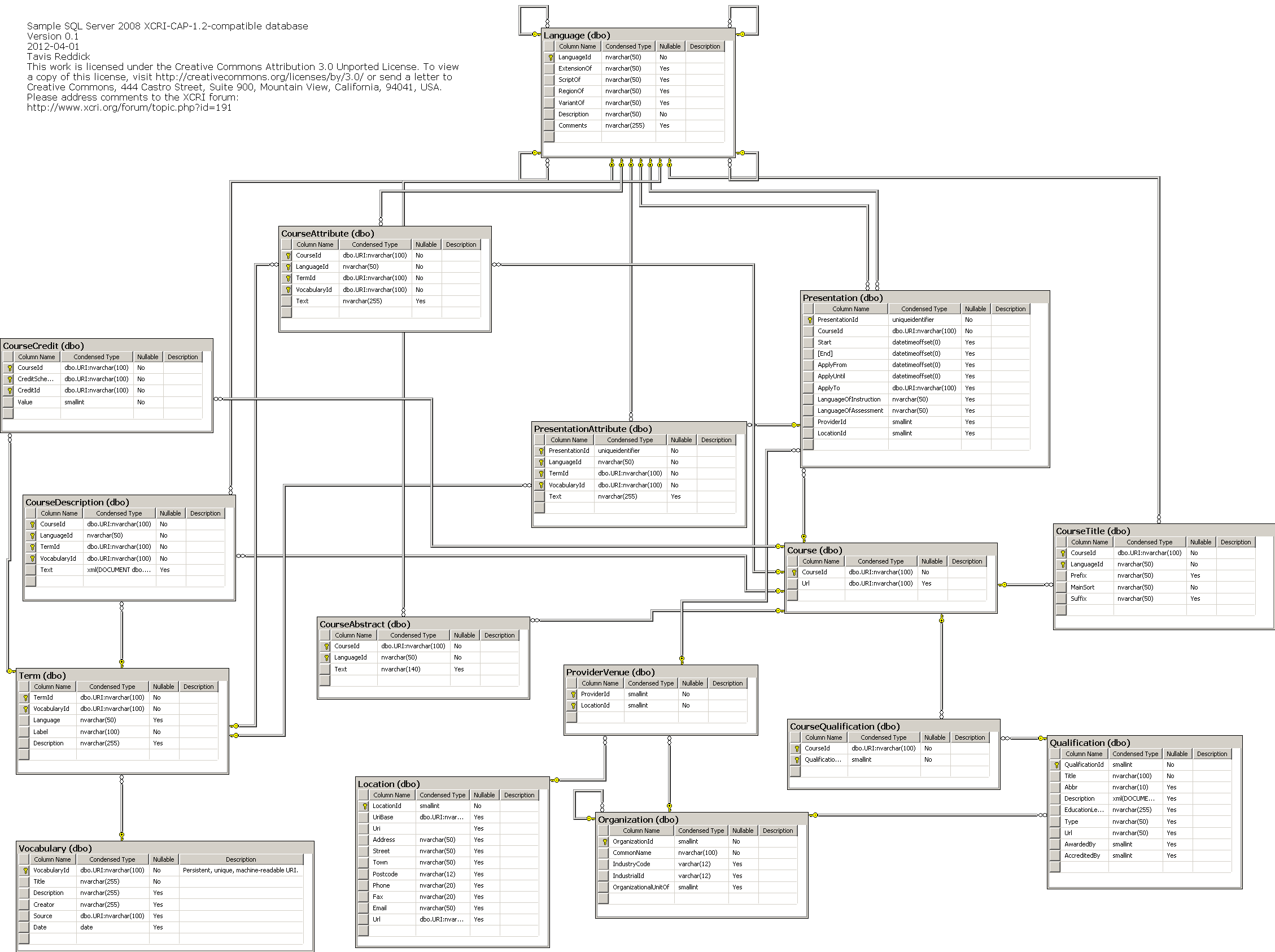

Database diagram of XCRI-CAP-1.2-compatible database.

Design features and issues

  • There is a user-defined data type for URI, and a custom XML schema for XHTML.
  • Generalization, where possible, was used instead of one-to-one matching of CAP elements to database tables. For example, course descriptions and course and presentation attributes are consolidated in three tables.
  • Extensibility (particularly geared towards ease of importing new vocabularies) was a design consideration.
  • Multiple language support.
  • A variety of primary keys were used (URIs, UNIQUEIDENTIFIERs, incrementing identity columns) for comparison, although not necessarily as good practice.
  • Pascal case table names, matching XCRI CAP 1.2 elements where they directly correspond.
  • Course title components allow for selective reordering and sorting (but not separate styling).

Create the database objects

Create a new, empty database in a development SQL Server 2008 environment, and run the following T-SQL:

--USE <YourDatabaseName> --GO /* Sample SQL Server 2008 XCRI-CAP-1.2-compatible database Version 0.1 2012-04-01 Tavis Reddick This work is licensed under the Creative Commons Attribution 3.0 Unported License. To view a copy of this license, visit http://creativecommons.org/licenses/by/3.0/ or send a letter to Creative Commons, 444 Castro Street, Suite 900, Mountain View, California, 94041, USA. Please address comments to the XCRI forum: http://www.xcri.org/forum/topic.php?id=191 */ /****** Object: Table [dbo].[Organization] Script Date: 04/01/2012 17:53:11 ******/ SET ANSI_NULLS ON GO SET QUOTED_IDENTIFIER ON GO SET ANSI_PADDING ON GO CREATE TABLE [dbo].[Organization]( [OrganizationId] [smallint] IDENTITY(1,1) NOT NULL, [CommonName] [nvarchar](100) NOT NULL, [IndustryCode] [varchar](12) NULL, [IndustrialId] [varchar](12) NULL, [OrganizationalUnitOf] [smallint] NULL, CONSTRAINT [PK_Organization] PRIMARY KEY CLUSTERED ( [OrganizationId] ASC )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY] ) ON [PRIMARY] GO SET ANSI_PADDING OFF GO /****** Object: XmlSchemaCollection [dbo].[XHTML] Script Date: 04/01/2012 17:53:12 ******/ CREATE XML SCHEMA COLLECTION [dbo].[XHTML] AS N'<xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:t="http://www.w3.org/1999/xhtml" targetNamespace="http://www.w3.org/1999/xhtml"><xsd:element name="a"><xsd:complexType><xsd:simpleContent><xsd:extension base="xsd:string"><xsd:attribute name="href" type="t:restrictedURI" /></xsd:extension></xsd:simpleContent></xsd:complexType></xsd:element><xsd:element name="div" type="t:div.type" /><xsd:element name="em" type="t:xhtml.em.type" /><xsd:element name="li" type="t:listContent" /><xsd:element name="ol" type="t:xhtml.ol.type" /><xsd:element name="p" type="t:inlineContent" /><xsd:element name="strong" type="t:xhtml.strong.type" /><xsd:element name="ul" type="t:xhtml.ul.type" /><xsd:complexType name="div.type" mixed="true"><xsd:complexContent mixed="true"><xsd:restriction base="xsd:anyType"><xsd:choice minOccurs="0" maxOccurs="unbounded"><xsd:element ref="t:p" /><xsd:element ref="t:ol" /><xsd:element ref="t:ul" /></xsd:choice></xsd:restriction></xsd:complexContent></xsd:complexType><xsd:complexType name="inlineContent" mixed="true"><xsd:complexContent mixed="true"><xsd:restriction base="xsd:anyType"><xsd:choice minOccurs="0" maxOccurs="unbounded"><xsd:element ref="t:a" /><xsd:element ref="t:em" /><xsd:element ref="t:strong" /></xsd:choice></xsd:restriction></xsd:complexContent></xsd:complexType><xsd:complexType name="listContent" mixed="true"><xsd:complexContent mixed="true"><xsd:extension base="t:inlineContent"><xsd:choice minOccurs="0" maxOccurs="unbounded"><xsd:element ref="t:ol" /><xsd:element ref="t:ul" /></xsd:choice></xsd:extension></xsd:complexContent></xsd:complexType><xsd:complexType name="xhtml.em.type" mixed="true"><xsd:complexContent mixed="true"><xsd:restriction base="xsd:anyType" /></xsd:complexContent></xsd:complexType><xsd:complexType name="xhtml.ol.type"><xsd:complexContent><xsd:restriction base="xsd:anyType"><xsd:sequence><xsd:element ref="t:li" maxOccurs="unbounded" /></xsd:sequence></xsd:restriction></xsd:complexContent></xsd:complexType><xsd:complexType name="xhtml.strong.type" mixed="true"><xsd:complexContent mixed="true"><xsd:restriction base="xsd:anyType" /></xsd:complexContent></xsd:complexType><xsd:complexType name="xhtml.ul.type"><xsd:complexContent><xsd:restriction base="xsd:anyType"><xsd:sequence><xsd:element ref="t:li" maxOccurs="unbounded" /></xsd:sequence></xsd:restriction></xsd:complexContent></xsd:complexType><xsd:simpleType name="restrictedURI"><xsd:restriction base="xsd:anyURI"><xsd:pattern value="http://.*" /></xsd:restriction></xsd:simpleType></xsd:schema>' GO /****** Object: UserDefinedDataType [dbo].[URI] Script Date: 04/01/2012 17:53:11 ******/ CREATE TYPE [dbo].[URI] FROM [nvarchar](100) NULL GO /****** Object: Table [dbo].[Language] Script Date: 04/01/2012 17:53:11 ******/ SET ANSI_NULLS ON GO SET QUOTED_IDENTIFIER ON GO CREATE TABLE [dbo].[Language]( [LanguageId] [nvarchar](50) NOT NULL, [ExtensionOf] [nvarchar](50) NULL, [ScriptOf] [nvarchar](50) NULL, [RegionOf] [nvarchar](50) NULL, [VariantOf] [nvarchar](50) NULL, [Description] [nvarchar](50) NOT NULL, [Comments] [nvarchar](255) NULL, CONSTRAINT [PK_Language] PRIMARY KEY CLUSTERED ( [LanguageId] ASC )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY] ) ON [PRIMARY] GO EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'http://tools.ietf.org/rfc/bcp/bcp47.txt' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'Language' GO /****** Object: Table [dbo].[Course] Script Date: 04/01/2012 17:53:11 ******/ SET ANSI_NULLS ON GO SET QUOTED_IDENTIFIER ON GO CREATE TABLE [dbo].[Course]( [CourseId] [dbo].[URI] NOT NULL, [Url] [dbo].[URI] NULL, CONSTRAINT [PK_Course] PRIMARY KEY CLUSTERED ( [CourseId] ASC )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY] ) ON [PRIMARY] GO EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'http://www.xcri.org/wiki/index.php/XCRI_CAP_1.2#the_.3Ccourse.3E_element' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'Course' GO /****** Object: Table [dbo].[Vocabulary] Script Date: 04/01/2012 17:53:11 ******/ SET ANSI_NULLS ON GO SET QUOTED_IDENTIFIER ON GO CREATE TABLE [dbo].[Vocabulary]( [VocabularyId] [dbo].[URI] NOT NULL, [Title] [nvarchar](255) NOT NULL, [Description] [nvarchar](255) NULL, [Creator] [nvarchar](255) NULL, [Source] [dbo].[URI] NULL, [Date] [date] NULL, CONSTRAINT [PK_Vocabulary] PRIMARY KEY CLUSTERED ( [VocabularyId] ASC )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY] ) ON [PRIMARY] GO EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'Persistent, unique, machine-readable URI.' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'Vocabulary', @level2type=N'COLUMN',@level2name=N'VocabularyId' GO EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'Refer to Vocabulary Framework Document for the Course Data Programme.' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'Vocabulary' GO /****** Object: Table [dbo].[Location] Script Date: 04/01/2012 17:53:11 ******/ SET ANSI_NULLS ON GO SET QUOTED_IDENTIFIER ON GO SET ANSI_PADDING ON GO CREATE TABLE [dbo].[Location]( [LocationId] [smallint] IDENTITY(1,1) NOT NULL, [UriBase] [dbo].[URI] NULL, [Uri] AS ([UriBase]+CONVERT([nvarchar](4),[LocationId],(0))) PERSISTED, [Address] [nvarchar](50) NULL, [Street] [nvarchar](50) NULL, [Town] [nvarchar](50) NULL, [Postcode] [nvarchar](12) NULL, [Phone] [nvarchar](20) NULL, [Fax] [nvarchar](20) NULL, [Email] [nvarchar](50) NULL, [Url] [dbo].[URI] NULL, CONSTRAINT [PK_Location] PRIMARY KEY CLUSTERED ( [LocationId] ASC )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY] ) ON [PRIMARY] GO SET ANSI_PADDING OFF GO /****** Object: Table [dbo].[Qualification] Script Date: 04/01/2012 17:53:11 ******/ SET ANSI_NULLS ON GO SET QUOTED_IDENTIFIER ON GO CREATE TABLE [dbo].[Qualification]( [QualificationId] [smallint] IDENTITY(1,1) NOT NULL, [Title] [nvarchar](100) NOT NULL, [Abbr] [nvarchar](10) NULL, [Description] [xml](DOCUMENT [dbo].[XHTML]) NULL, [EducationLevel] [nvarchar](255) NULL, [Type] [nvarchar](50) NULL, [Url] [nvarchar](50) NULL, [AwardedBy] [smallint] NULL, [AccreditedBy] [smallint] NULL, CONSTRAINT [PK_Qualification] PRIMARY KEY CLUSTERED ( [QualificationId] ASC )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY] ) ON [PRIMARY] GO EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'http://www.xcri.org/wiki/index.php/XCRI_CAP_1.2#the_.3Cqualification.3E_element' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'Qualification' GO /****** Object: Table [dbo].[ProviderVenue] Script Date: 04/01/2012 17:53:11 ******/ SET ANSI_NULLS ON GO SET QUOTED_IDENTIFIER ON GO CREATE TABLE [dbo].[ProviderVenue]( [ProviderId] [smallint] NOT NULL, [LocationId] [smallint] NOT NULL, CONSTRAINT [PK_ProviderVenue] PRIMARY KEY CLUSTERED ( [ProviderId] ASC, [LocationId] ASC )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY] ) ON [PRIMARY] GO /****** Object: Table [dbo].[CourseAbstract] Script Date: 04/01/2012 17:53:11 ******/ SET ANSI_NULLS ON GO SET QUOTED_IDENTIFIER ON GO CREATE TABLE [dbo].[CourseAbstract]( [CourseId] [dbo].[URI] NOT NULL, [LanguageId] [nvarchar](50) NOT NULL, [Text] [nvarchar](140) NULL, CONSTRAINT [PK_CourseAbtract] PRIMARY KEY CLUSTERED ( [CourseId] ASC, [LanguageId] ASC )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY] ) ON [PRIMARY] GO /****** Object: Table [dbo].[Term] Script Date: 04/01/2012 17:53:11 ******/ SET ANSI_NULLS ON GO SET QUOTED_IDENTIFIER ON GO CREATE TABLE [dbo].[Term]( [TermId] [dbo].[URI] NOT NULL, [VocabularyId] [dbo].[URI] NOT NULL, [Language] [nvarchar](50) NULL, [Label] [nvarchar](100) NOT NULL, [Description] [nvarchar](255) NULL, CONSTRAINT [PK_Term] PRIMARY KEY CLUSTERED ( [TermId] ASC, [VocabularyId] ASC )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY] ) ON [PRIMARY] GO EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'Generic term entity.' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'Term' GO /****** Object: Table [dbo].[CourseTitle] Script Date: 04/01/2012 17:53:11 ******/ SET ANSI_NULLS ON GO SET QUOTED_IDENTIFIER ON GO CREATE TABLE [dbo].[CourseTitle]( [CourseId] [dbo].[URI] NOT NULL, [LanguageId] [nvarchar](50) NOT NULL, [Prefix] [nvarchar](50) NULL, [MainSort] [nvarchar](50) NOT NULL, [Suffix] [nvarchar](50) NULL, CONSTRAINT [PK_CourseTitle] PRIMARY KEY CLUSTERED ( [CourseId] ASC, [LanguageId] ASC )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY] ) ON [PRIMARY] GO EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'Titles in 1+ languages broken into rearrangeable components.' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'CourseTitle' GO /****** Object: Table [dbo].[CourseQualification] Script Date: 04/01/2012 17:53:11 ******/ SET ANSI_NULLS ON GO SET QUOTED_IDENTIFIER ON GO CREATE TABLE [dbo].[CourseQualification]( [CourseId] [dbo].[URI] NOT NULL, [QualificationId] [smallint] NOT NULL, CONSTRAINT [PK_CourseQualification] PRIMARY KEY CLUSTERED ( [CourseId] ASC, [QualificationId] ASC )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY] ) ON [PRIMARY] GO /****** Object: Table [dbo].[CourseDescription] Script Date: 04/01/2012 17:53:11 ******/ SET ANSI_NULLS ON GO SET QUOTED_IDENTIFIER ON GO CREATE TABLE [dbo].[CourseDescription]( [CourseId] [dbo].[URI] NOT NULL, [LanguageId] [nvarchar](50) NOT NULL, [TermId] [dbo].[URI] NOT NULL, [VocabularyId] [dbo].[URI] NOT NULL, [Text] [xml](DOCUMENT [dbo].[XHTML]) NULL, CONSTRAINT [PK_Description] PRIMARY KEY CLUSTERED ( [CourseId] ASC, [LanguageId] ASC, [TermId] ASC, [VocabularyId] ASC )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY] ) ON [PRIMARY] GO /****** Object: Table [dbo].[CourseCredit] Script Date: 04/01/2012 17:53:11 ******/ SET ANSI_NULLS ON GO SET QUOTED_IDENTIFIER ON GO CREATE TABLE [dbo].[CourseCredit]( [CourseId] [dbo].[URI] NOT NULL, [CreditSchemeId] [dbo].[URI] NOT NULL, [CreditId] [dbo].[URI] NOT NULL, [Value] [smallint] NOT NULL, CONSTRAINT [PK_CourseCredit] PRIMARY KEY CLUSTERED ( [CourseId] ASC, [CreditSchemeId] ASC, [CreditId] ASC )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY] ) ON [PRIMARY] GO /****** Object: Table [dbo].[CourseAttribute] Script Date: 04/01/2012 17:53:11 ******/ SET ANSI_NULLS ON GO SET QUOTED_IDENTIFIER ON GO CREATE TABLE [dbo].[CourseAttribute]( [CourseId] [dbo].[URI] NOT NULL, [LanguageId] [nvarchar](50) NOT NULL, [TermId] [dbo].[URI] NOT NULL, [VocabularyId] [dbo].[URI] NOT NULL, [Text] [nvarchar](255) NULL, CONSTRAINT [PK_CourseSubject] PRIMARY KEY CLUSTERED ( [CourseId] ASC, [LanguageId] ASC, [TermId] ASC, [VocabularyId] ASC )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY] ) ON [PRIMARY] GO EXEC sys.sp_addextendedproperty @name=N'MS_Description', @value=N'http://www.xcri.org/wiki/index.php/XCRI_CAP_1.2#the_.3Csubject.3E_element' , @level0type=N'SCHEMA',@level0name=N'dbo', @level1type=N'TABLE',@level1name=N'CourseAttribute' GO /****** Object: Table [dbo].[Presentation] Script Date: 04/01/2012 17:53:11 ******/ SET ANSI_NULLS ON GO SET QUOTED_IDENTIFIER ON GO CREATE TABLE [dbo].[Presentation]( [PresentationId] [uniqueidentifier] ROWGUIDCOL NOT NULL, [CourseId] [dbo].[URI] NOT NULL, [Start] [datetimeoffset](0) NULL, [End] [datetimeoffset](0) NULL, [ApplyFrom] [datetimeoffset](0) NULL, [ApplyUntil] [datetimeoffset](0) NULL, [ApplyTo] [dbo].[URI] NULL, [LanguageOfInstruction] [nvarchar](50) NULL, [LanguageOfAssessment] [nvarchar](50) NULL, [ProviderId] [smallint] NULL, [LocationId] [smallint] NULL, CONSTRAINT [PK__Presenta__B3613E5C42E1EEFE] PRIMARY KEY CLUSTERED ( [PresentationId] ASC )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY] ) ON [PRIMARY] GO /****** Object: Table [dbo].[PresentationAttribute] Script Date: 04/01/2012 17:53:11 ******/ SET ANSI_NULLS ON GO SET QUOTED_IDENTIFIER ON GO CREATE TABLE [dbo].[PresentationAttribute]( [PresentationId] [uniqueidentifier] NOT NULL, [LanguageId] [nvarchar](50) NOT NULL, [TermId] [dbo].[URI] NOT NULL, [VocabularyId] [dbo].[URI] NOT NULL, [Text] [nvarchar](255) NULL, CONSTRAINT [PK_PresentationAttribute] PRIMARY KEY CLUSTERED ( [PresentationId] ASC, [LanguageId] ASC, [TermId] ASC, [VocabularyId] ASC )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY] ) ON [PRIMARY] GO /****** Object: Default [DF_CourseAttribute_LanguageId] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[CourseAttribute] ADD CONSTRAINT [DF_CourseAttribute_LanguageId] DEFAULT (N'en') FOR [LanguageId] GO /****** Object: Default [DF__Presentat__Prese__44CA3770] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[Presentation] ADD CONSTRAINT [DF__Presentat__Prese__44CA3770] DEFAULT (newsequentialid()) FOR [PresentationId] GO /****** Object: Default [DF_Term_Language] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[Term] ADD CONSTRAINT [DF_Term_Language] DEFAULT (N'en') FOR [Language] GO /****** Object: ForeignKey [FK_CourseAbtract_Course] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[CourseAbstract] WITH CHECK ADD CONSTRAINT [FK_CourseAbtract_Course] FOREIGN KEY([CourseId]) REFERENCES [dbo].[Course] ([CourseId]) GO ALTER TABLE [dbo].[CourseAbstract] CHECK CONSTRAINT [FK_CourseAbtract_Course] GO /****** Object: ForeignKey [FK_CourseAbtract_Language] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[CourseAbstract] WITH CHECK ADD CONSTRAINT [FK_CourseAbtract_Language] FOREIGN KEY([LanguageId]) REFERENCES [dbo].[Language] ([LanguageId]) GO ALTER TABLE [dbo].[CourseAbstract] CHECK CONSTRAINT [FK_CourseAbtract_Language] GO /****** Object: ForeignKey [FK_CourseAttribute_Course] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[CourseAttribute] WITH CHECK ADD CONSTRAINT [FK_CourseAttribute_Course] FOREIGN KEY([CourseId]) REFERENCES [dbo].[Course] ([CourseId]) GO ALTER TABLE [dbo].[CourseAttribute] CHECK CONSTRAINT [FK_CourseAttribute_Course] GO /****** Object: ForeignKey [FK_CourseAttribute_Language] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[CourseAttribute] WITH CHECK ADD CONSTRAINT [FK_CourseAttribute_Language] FOREIGN KEY([LanguageId]) REFERENCES [dbo].[Language] ([LanguageId]) GO ALTER TABLE [dbo].[CourseAttribute] CHECK CONSTRAINT [FK_CourseAttribute_Language] GO /****** Object: ForeignKey [FK_CourseAttribute_Term] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[CourseAttribute] WITH CHECK ADD CONSTRAINT [FK_CourseAttribute_Term] FOREIGN KEY([TermId], [VocabularyId]) REFERENCES [dbo].[Term] ([TermId], [VocabularyId]) GO ALTER TABLE [dbo].[CourseAttribute] CHECK CONSTRAINT [FK_CourseAttribute_Term] GO /****** Object: ForeignKey [FK_CourseCredit_Course] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[CourseCredit] WITH CHECK ADD CONSTRAINT [FK_CourseCredit_Course] FOREIGN KEY([CourseId]) REFERENCES [dbo].[Course] ([CourseId]) GO ALTER TABLE [dbo].[CourseCredit] CHECK CONSTRAINT [FK_CourseCredit_Course] GO /****** Object: ForeignKey [FK_CourseCredit_Scheme] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[CourseCredit] WITH CHECK ADD CONSTRAINT [FK_CourseCredit_Scheme] FOREIGN KEY([CreditId], [CreditSchemeId]) REFERENCES [dbo].[Term] ([TermId], [VocabularyId]) GO ALTER TABLE [dbo].[CourseCredit] CHECK CONSTRAINT [FK_CourseCredit_Scheme] GO /****** Object: ForeignKey [FK_CourseDescription_Course] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[CourseDescription] WITH CHECK ADD CONSTRAINT [FK_CourseDescription_Course] FOREIGN KEY([CourseId]) REFERENCES [dbo].[Course] ([CourseId]) GO ALTER TABLE [dbo].[CourseDescription] CHECK CONSTRAINT [FK_CourseDescription_Course] GO /****** Object: ForeignKey [FK_CourseDescription_Language] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[CourseDescription] WITH CHECK ADD CONSTRAINT [FK_CourseDescription_Language] FOREIGN KEY([LanguageId]) REFERENCES [dbo].[Language] ([LanguageId]) GO ALTER TABLE [dbo].[CourseDescription] CHECK CONSTRAINT [FK_CourseDescription_Language] GO /****** Object: ForeignKey [FK_CourseDescription_Term] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[CourseDescription] WITH CHECK ADD CONSTRAINT [FK_CourseDescription_Term] FOREIGN KEY([TermId], [VocabularyId]) REFERENCES [dbo].[Term] ([TermId], [VocabularyId]) GO ALTER TABLE [dbo].[CourseDescription] CHECK CONSTRAINT [FK_CourseDescription_Term] GO /****** Object: ForeignKey [FK_CourseQualification_Course] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[CourseQualification] WITH CHECK ADD CONSTRAINT [FK_CourseQualification_Course] FOREIGN KEY([CourseId]) REFERENCES [dbo].[Course] ([CourseId]) GO ALTER TABLE [dbo].[CourseQualification] CHECK CONSTRAINT [FK_CourseQualification_Course] GO /****** Object: ForeignKey [FK_CourseQualification_Qualification] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[CourseQualification] WITH CHECK ADD CONSTRAINT [FK_CourseQualification_Qualification] FOREIGN KEY([QualificationId]) REFERENCES [dbo].[Qualification] ([QualificationId]) GO ALTER TABLE [dbo].[CourseQualification] CHECK CONSTRAINT [FK_CourseQualification_Qualification] GO /****** Object: ForeignKey [FK_CourseTitle_Course] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[CourseTitle] WITH CHECK ADD CONSTRAINT [FK_CourseTitle_Course] FOREIGN KEY([CourseId]) REFERENCES [dbo].[Course] ([CourseId]) GO ALTER TABLE [dbo].[CourseTitle] CHECK CONSTRAINT [FK_CourseTitle_Course] GO /****** Object: ForeignKey [FK_CourseTitle_Language] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[CourseTitle] WITH CHECK ADD CONSTRAINT [FK_CourseTitle_Language] FOREIGN KEY([LanguageId]) REFERENCES [dbo].[Language] ([LanguageId]) GO ALTER TABLE [dbo].[CourseTitle] CHECK CONSTRAINT [FK_CourseTitle_Language] GO /****** Object: ForeignKey [FK_Language_Language] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[Language] WITH CHECK ADD CONSTRAINT [FK_Language_Language] FOREIGN KEY([ExtensionOf]) REFERENCES [dbo].[Language] ([LanguageId]) GO ALTER TABLE [dbo].[Language] CHECK CONSTRAINT [FK_Language_Language] GO /****** Object: ForeignKey [FK_Language_Language1] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[Language] WITH CHECK ADD CONSTRAINT [FK_Language_Language1] FOREIGN KEY([ScriptOf]) REFERENCES [dbo].[Language] ([LanguageId]) GO ALTER TABLE [dbo].[Language] CHECK CONSTRAINT [FK_Language_Language1] GO /****** Object: ForeignKey [FK_Language_Language2] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[Language] WITH CHECK ADD CONSTRAINT [FK_Language_Language2] FOREIGN KEY([RegionOf]) REFERENCES [dbo].[Language] ([LanguageId]) GO ALTER TABLE [dbo].[Language] CHECK CONSTRAINT [FK_Language_Language2] GO /****** Object: ForeignKey [FK_Language_Language3] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[Language] WITH CHECK ADD CONSTRAINT [FK_Language_Language3] FOREIGN KEY([VariantOf]) REFERENCES [dbo].[Language] ([LanguageId]) GO ALTER TABLE [dbo].[Language] CHECK CONSTRAINT [FK_Language_Language3] GO /****** Object: ForeignKey [FK_Organization_Organization] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[Organization] WITH CHECK ADD CONSTRAINT [FK_Organization_Organization] FOREIGN KEY([OrganizationalUnitOf]) REFERENCES [dbo].[Organization] ([OrganizationId]) GO ALTER TABLE [dbo].[Organization] CHECK CONSTRAINT [FK_Organization_Organization] GO /****** Object: ForeignKey [FK_Presentation_Course] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[Presentation] WITH CHECK ADD CONSTRAINT [FK_Presentation_Course] FOREIGN KEY([CourseId]) REFERENCES [dbo].[Course] ([CourseId]) GO ALTER TABLE [dbo].[Presentation] CHECK CONSTRAINT [FK_Presentation_Course] GO /****** Object: ForeignKey [FK_Presentation_LanguageOfAssessment] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[Presentation] WITH CHECK ADD CONSTRAINT [FK_Presentation_LanguageOfAssessment] FOREIGN KEY([LanguageOfAssessment]) REFERENCES [dbo].[Language] ([LanguageId]) GO ALTER TABLE [dbo].[Presentation] CHECK CONSTRAINT [FK_Presentation_LanguageOfAssessment] GO /****** Object: ForeignKey [FK_Presentation_LanguageOfInstruction] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[Presentation] WITH CHECK ADD CONSTRAINT [FK_Presentation_LanguageOfInstruction] FOREIGN KEY([LanguageOfInstruction]) REFERENCES [dbo].[Language] ([LanguageId]) GO ALTER TABLE [dbo].[Presentation] CHECK CONSTRAINT [FK_Presentation_LanguageOfInstruction] GO /****** Object: ForeignKey [FK_Presentation_ProviderVenue] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[Presentation] WITH CHECK ADD CONSTRAINT [FK_Presentation_ProviderVenue] FOREIGN KEY([ProviderId], [LocationId]) REFERENCES [dbo].[ProviderVenue] ([ProviderId], [LocationId]) GO ALTER TABLE [dbo].[Presentation] CHECK CONSTRAINT [FK_Presentation_ProviderVenue] GO /****** Object: ForeignKey [FK_PresentationAttribute_Language] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[PresentationAttribute] WITH CHECK ADD CONSTRAINT [FK_PresentationAttribute_Language] FOREIGN KEY([LanguageId]) REFERENCES [dbo].[Language] ([LanguageId]) GO ALTER TABLE [dbo].[PresentationAttribute] CHECK CONSTRAINT [FK_PresentationAttribute_Language] GO /****** Object: ForeignKey [FK_PresentationAttribute_Presentation] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[PresentationAttribute] WITH CHECK ADD CONSTRAINT [FK_PresentationAttribute_Presentation] FOREIGN KEY([PresentationId]) REFERENCES [dbo].[Presentation] ([PresentationId]) GO ALTER TABLE [dbo].[PresentationAttribute] CHECK CONSTRAINT [FK_PresentationAttribute_Presentation] GO /****** Object: ForeignKey [FK_PresentationAttribute_Term] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[PresentationAttribute] WITH CHECK ADD CONSTRAINT [FK_PresentationAttribute_Term] FOREIGN KEY([TermId], [VocabularyId]) REFERENCES [dbo].[Term] ([TermId], [VocabularyId]) GO ALTER TABLE [dbo].[PresentationAttribute] CHECK CONSTRAINT [FK_PresentationAttribute_Term] GO /****** Object: ForeignKey [FK_ProviderVenue_Location] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[ProviderVenue] WITH CHECK ADD CONSTRAINT [FK_ProviderVenue_Location] FOREIGN KEY([LocationId]) REFERENCES [dbo].[Location] ([LocationId]) GO ALTER TABLE [dbo].[ProviderVenue] CHECK CONSTRAINT [FK_ProviderVenue_Location] GO /****** Object: ForeignKey [FK_ProviderVenue_Organization] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[ProviderVenue] WITH CHECK ADD CONSTRAINT [FK_ProviderVenue_Organization] FOREIGN KEY([ProviderId]) REFERENCES [dbo].[Organization] ([OrganizationId]) GO ALTER TABLE [dbo].[ProviderVenue] CHECK CONSTRAINT [FK_ProviderVenue_Organization] GO /****** Object: ForeignKey [FK_Qualification_AccreditedByOrganization] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[Qualification] WITH CHECK ADD CONSTRAINT [FK_Qualification_AccreditedByOrganization] FOREIGN KEY([AccreditedBy]) REFERENCES [dbo].[Organization] ([OrganizationId]) GO ALTER TABLE [dbo].[Qualification] CHECK CONSTRAINT [FK_Qualification_AccreditedByOrganization] GO /****** Object: ForeignKey [FK_Qualification_AwardedByOrganization] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[Qualification] WITH CHECK ADD CONSTRAINT [FK_Qualification_AwardedByOrganization] FOREIGN KEY([AwardedBy]) REFERENCES [dbo].[Organization] ([OrganizationId]) GO ALTER TABLE [dbo].[Qualification] CHECK CONSTRAINT [FK_Qualification_AwardedByOrganization] GO /****** Object: ForeignKey [FK_Term_Vocabulary] Script Date: 04/01/2012 17:53:11 ******/ ALTER TABLE [dbo].[Term] WITH CHECK ADD CONSTRAINT [FK_Term_Vocabulary] FOREIGN KEY([VocabularyId]) REFERENCES [dbo].[Vocabulary] ([VocabularyId]) ON UPDATE CASCADE ON DELETE CASCADE GO ALTER TABLE [dbo].[Term] CHECK CONSTRAINT [FK_Term_Vocabulary] GO

Further topics

A working demonstration of the web pages built from this code scan be found on the fictional Kelpie College website courses section.

For more information on the standard, see the XCRI Knowledge Base.
